Vanix: TeacX - LTE+ GSM+ GPRS + GPS Module for IOT Applications
- Unit price
- / per
Brand | Vanix |
Connectivity Technology | USB, I2C, GPIO |
Included Components | 1 pcs-TeacX, 1 pcs-Celluar Patch Antenna |
Total USB Ports | 1 |
About this item

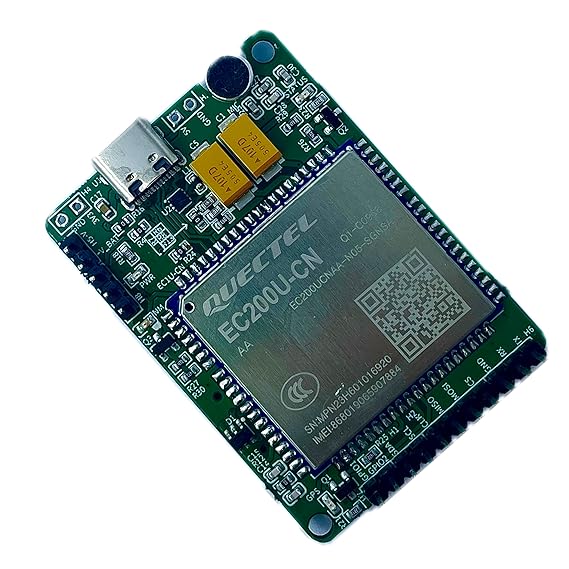

- Supports 4G + 3G + 2G networks with EC200UN-CN 4G Communication Module for reliable and fast data transmission.
- Integrated GNSS for precise location tracking, ideal for applications like asset tracking and navigation.

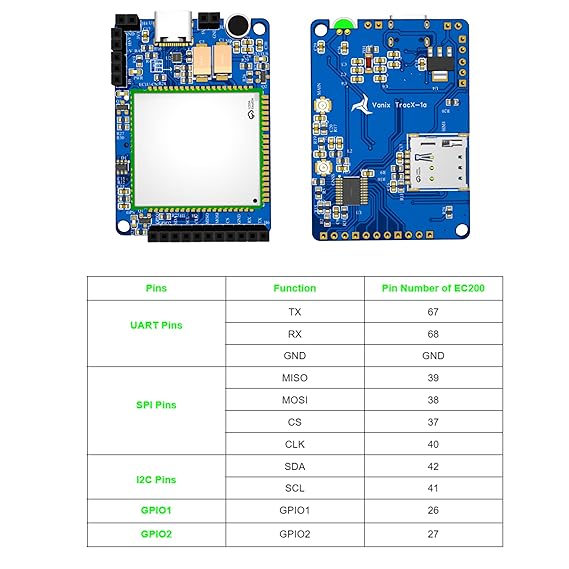

- Features USB C, extra2-GPIO, and communication pins for SPI, UART, and I2C, enabling seamless integration of various sensors and modules.
- Supports dial-up, telephone calls, SMS, TCP, UDP, MQTT, DTMF, HTTP, FTP, etc.
- With onboard Microphone facilitates a range of use cases, from voice commands to audio monitoring, enhancing the module’s versatility
- Header Pins connected

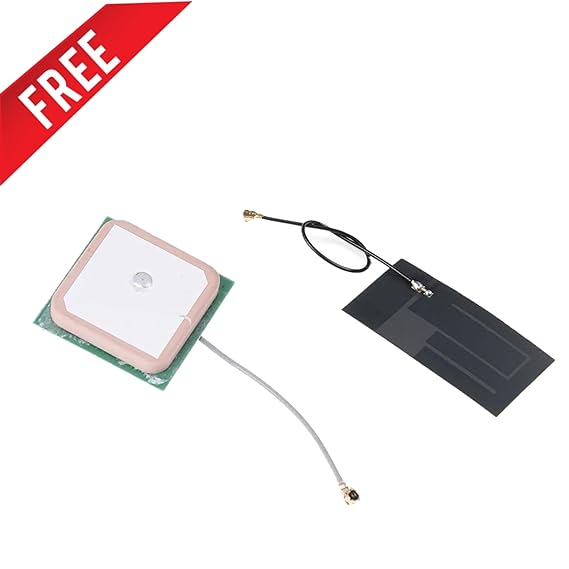

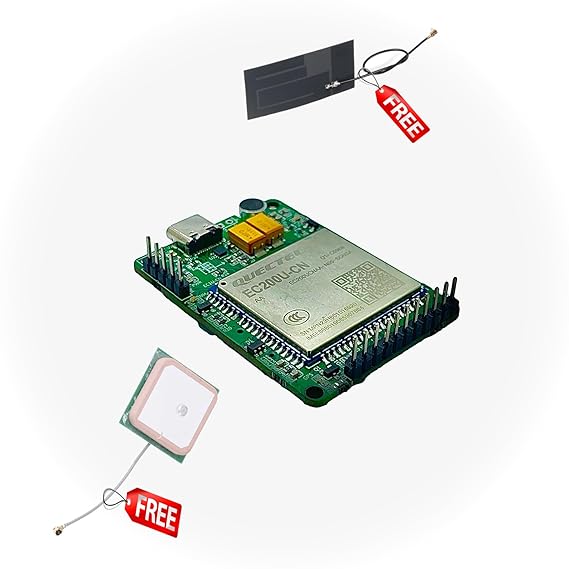

- 1pc free Cellular patch antenna and 1 pc free GNSS antenna
Product information
Technical Details
Brand | Vanix |
---|---|
Product Dimensions | 5.3 x 3.8 x 0.4 cm |
Mounting Hardware | 1 pcs-TeacX, 1 pcs-Celluar Patch Antenna |
Number of items | 2 |
Data Transfer Rate | 10 Megabytes Per Second |
Modem type | Cellular modem |
Total USB ports | 1 |
Connector Type | USB, I2C, GPIO |
Radio bands supported | Dual Band |
Manufacturer | Vanix Technologies Private Limited |
Additional Information
ASIN | B0CPWS1FXB |
---|---|
Date First Available | 2 December 2023 |
Packer | Vanix Technologies Private Limited |
Item Dimensions LxWxH | 5.3 x 3.8 x 0.4 Centimeters |
Generic Name | Industrial Modem |
Product Description
Discover the power of Vanix TeacX, a cutting-edge LTE + GSM + GPRS + GNSS module designed for the innovators and makers of tomorrow. Equipped with the EC200UN-CN 4G module, TracX seamlessly connects to a range of networks from 2G to 4G, ensuring your project stays connected, no matter where it is. Out of the box, TracX comes with a basic OS installed, based on QuecPython, offering a quick start to your development. For those seeking more customization, it's fully compatible with RTOS and other operating systems supported by the EC2000 module, allowing you to tailor the firmware or software to your specific needs. Whether you're developing smart meters, GPS tracking systems, or advanced telematics solutions, TracX is your reliable partner. With its robust design, versatile connectivity options, and extended GPIO and communication pins, the possibilities are endless. Dive into a world of innovation with Vanix TracX - the smart choice for your next big idea.
What is in the box?
- 1 pcs-TeacX, 1 pcs-Celluar Patch Antenna
