16 Channel 12V Relay Module Board

16 Channel 12V Relay Module Board

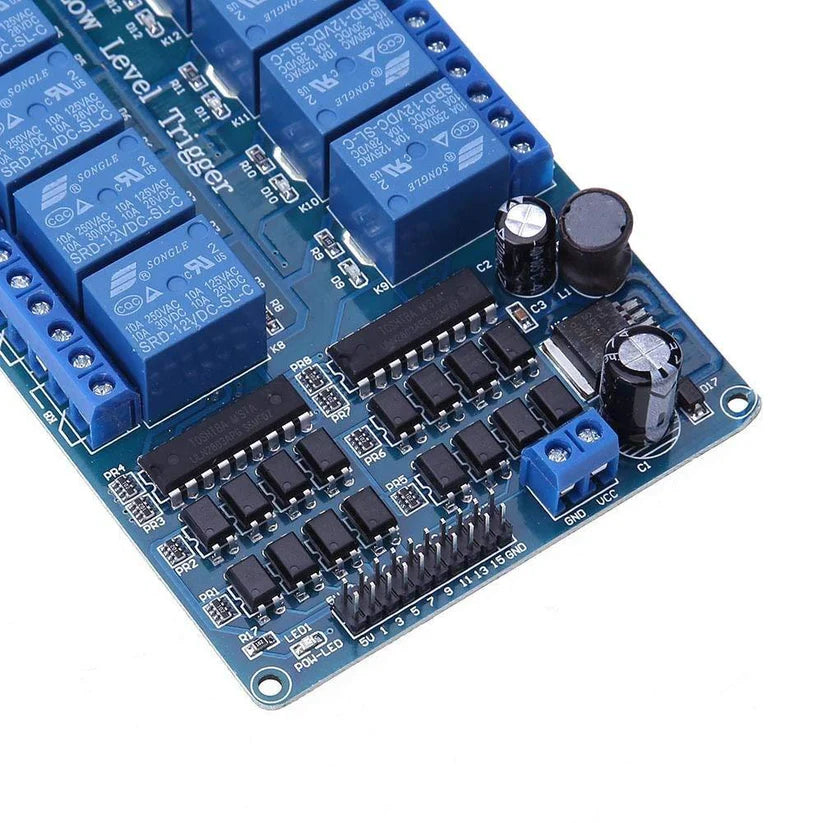

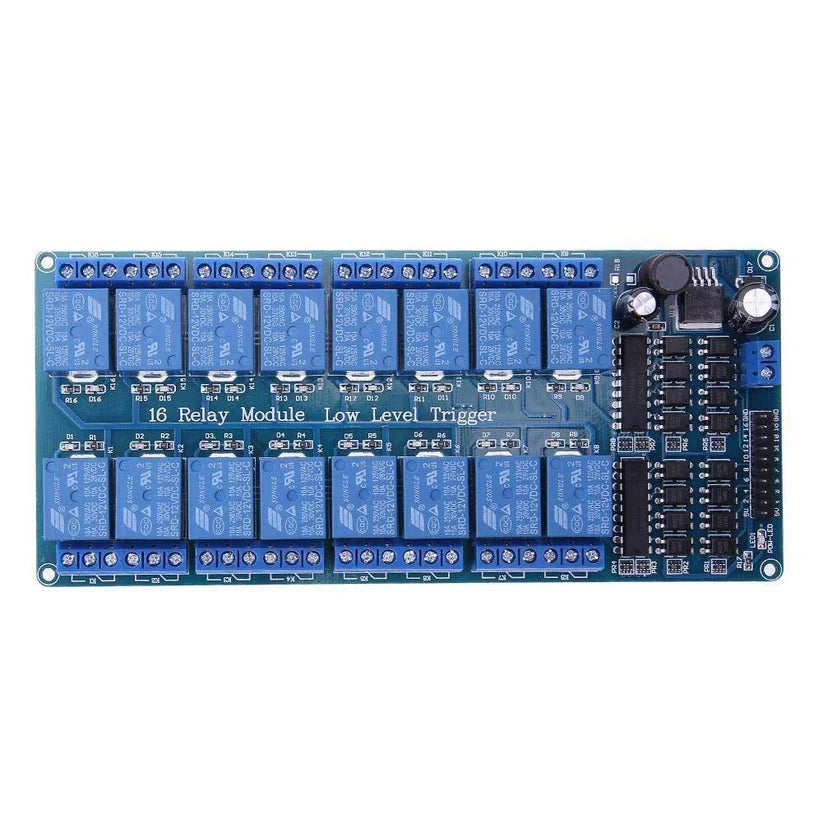

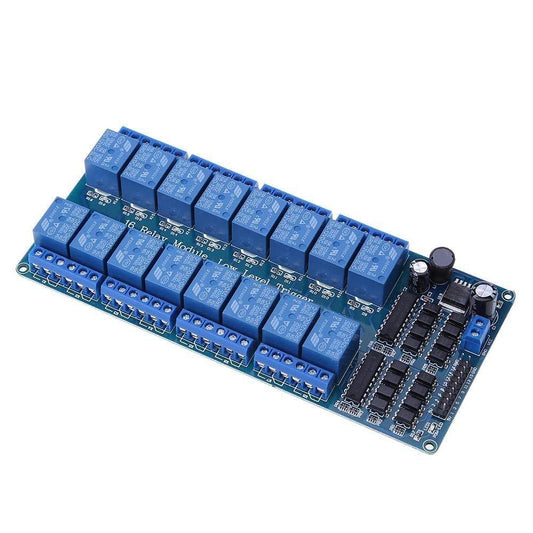

This is a 12V 16 Channel Relay Module with Light Coupling LM2576 Power Supply, Be able to control various appliances and other equipment with a large current. It can be controlled directly by a Microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, MSP430, TTL logic).

This is a 12V 16-Channel Relay interface board and each one of the individual relays needs 15-20mA Driver Current. The board features an indication LED for Relay output status and the standard interface that can be controlled directly by many widely used microcontrollers like Arduino etc.

The 12V electromechanical relay module with an AC contact capacity of 250V which also include light coupling protection(optocoupler) for isolation of control circuitry. The plate load power module doesn’t need an external power supply. It supports all SCM drives.

The LM2596S buck chip in this relay module shows a slight fever which is a normal phenomenon as relays, long working hours have normal fever characteristics. 4 relay load power to give leave some margin, should avoid high-power (about 2000W) and long working environment, there will be some impact on the life of the product.

Read our blog explaining What are Relays - Working, Applications & Types

Applications:

• Widely used for all MCU control
• Industrial sector
• PLC control
• Smart home control.

Package Includes:

• 1 x 12V 16CH Relay Board

Specifications
