35mm Dualtone buzzer

SKU: TES-EV103673
Regular price Rs. 144.00 Rs. 106.00 26% off
Unit price
per
No Reviews

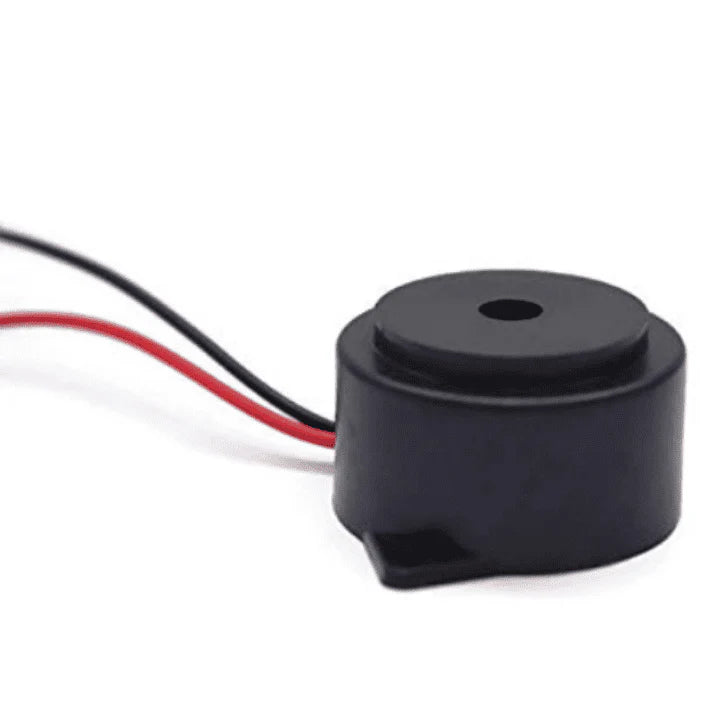

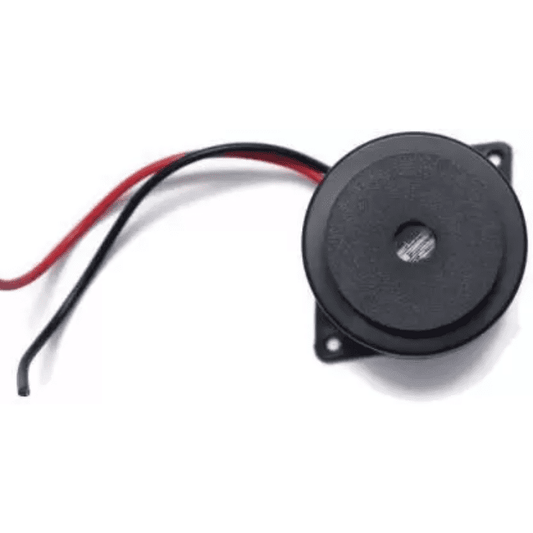

35mm Dualtone buzzer

35mm Dual tone buzzer

This is a 35mm big buzzer. It  is an audio signaling device like a beeper or buzzer may be electromechanical or piezoelectric or mechanical type. The main function of this is to convert the signal from audio to sound. Generally, it is powered through DC voltage and used in timers, alarm devices, printers, alarms, computers, etc. Based on the various designs, it can generate different sounds like alarm, music, bell & siren.

This is a Active Buzzer for Motor Bike and Electronics Horn Projects. It is a Piezo buzzer as it has Piezo Plate inside it. The diameter of this buzzer is 3.5cm and height is 2.5cm.

 Applications:

  • Electrical alarms
  • Educational purposes
  • Security applications
  • Electronic Metronomes
  • Household applications

Package Includes:

  • 1 x 35mm Dual tone buzzer

Specifications:

Minimum sound level 85db
Oscillation frequency 4KHz ± 500Hz
Current consumption Maximum 15mA
Operating voltage 1.5 to 27 VDC
Tone Continuous
